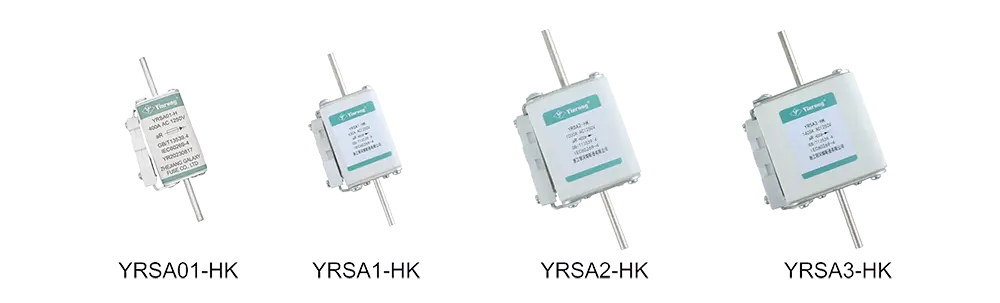

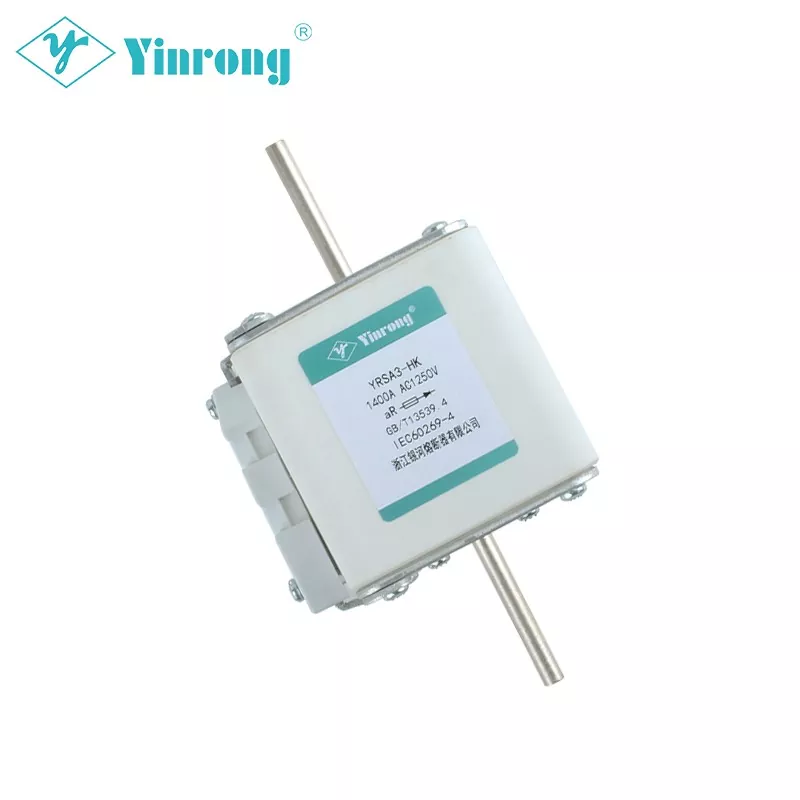

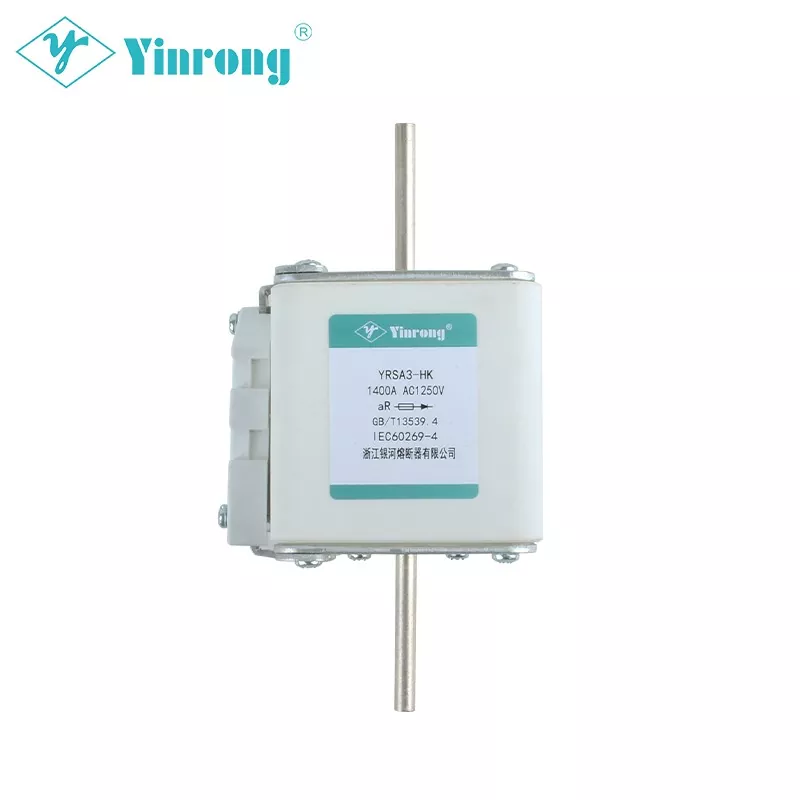

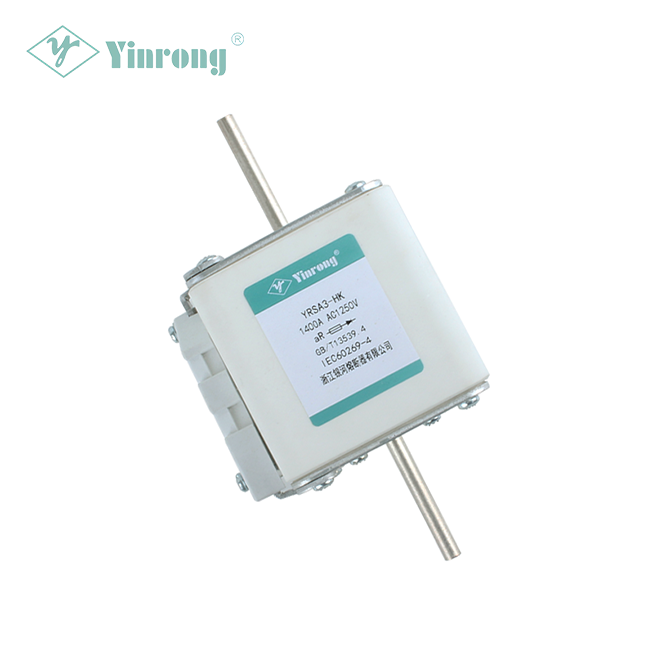

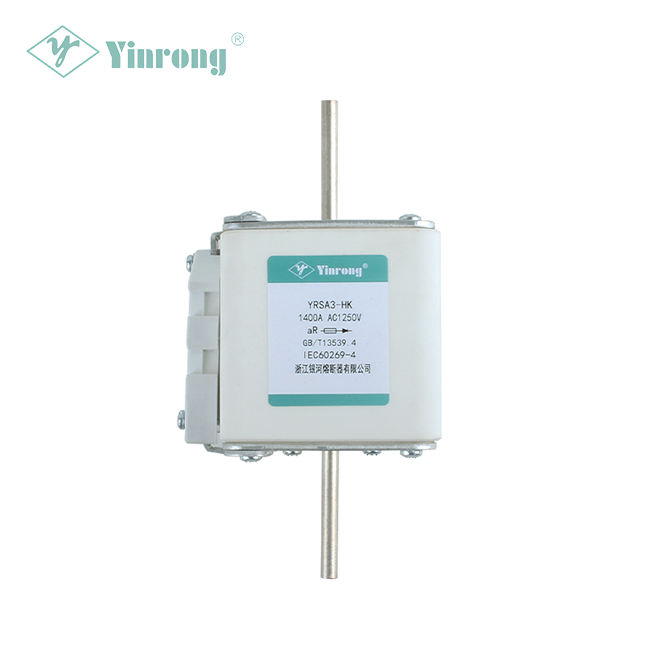

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuse

Ang Galaxy Fuse ay isang nangungunang tagagawa ng China YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuse. Ang China high speed semiconductor fuse supplier na Galaxy Fuse (Yinrong)'s YRSA(x)-HK Series gR high speed fuse ay espesyal na idinisenyo upang protektahan ang mga semiconductor device.

Magpadala ng Inquiry

Paglalarawan ng Produkto

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuses are designed for both overload and short-circuit protection. YRSA(x)-HK Series gR high speed fuses provide a wide amperage rating of 40-2000A under the rated voltage of 1250V (IEC/UL), which can typically fit most semiconductor devices. This YRSA(x)-HK Series gR high speed fuse conforms to the national standard GB13539.4 and the international electrical committee standard IEC60269-4.Many square body fuses are equipped with a trip-indicator. This trip indicator can operate a field-mountable micro-switch which is easily mounted directly onto the fuse. Galaxy Fuse (Yinrong) also affords various high speed fuses to meet customers' requirements.

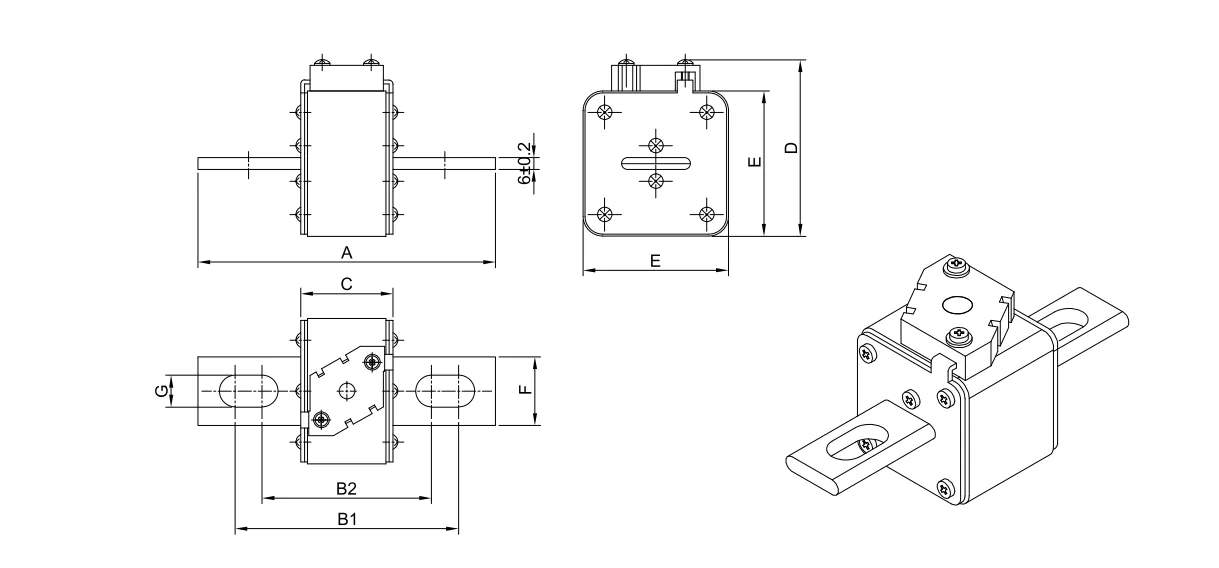

Sukat(mm)

P/N	A±2.5	A(115）±2.5	B1±2.5	B1（115）±2.5	B2±2.5	B2（115）±2.5	C±2.5	D±2.5	E±2	F±1	G±0.5
YRSA01-H	110	148	85	123	72	110	50	59	45	20	10
YRSA1-H	136	157	104	126	78	100	50	69	53	25	14
YRSA2-H	135	159	105	125	78	99	50	77	61	25	14
YRSA3-H	135	155	106	125	77	97	51	92	75	36	16

Mga Pag-apruba&Mga Pamantayan

·GB/T13539.4

·IEC60269-4

·UL248-13

Klase ng Operasyon

·gR

·aR

Mga Tampok＆Mga Benepisyo

· Available ang 1250VAC eletrical system

· Available ang mga rating na 40-2000A

· Lubhang mataas na nakakaabala na rating

·Sumusunod sa mga pamantayan ng IEC para sa pandaigdigang pagtanggap

· Superior na kakayahan sa pagbibisikleta

· Mataas na kasalukuyang limitasyon

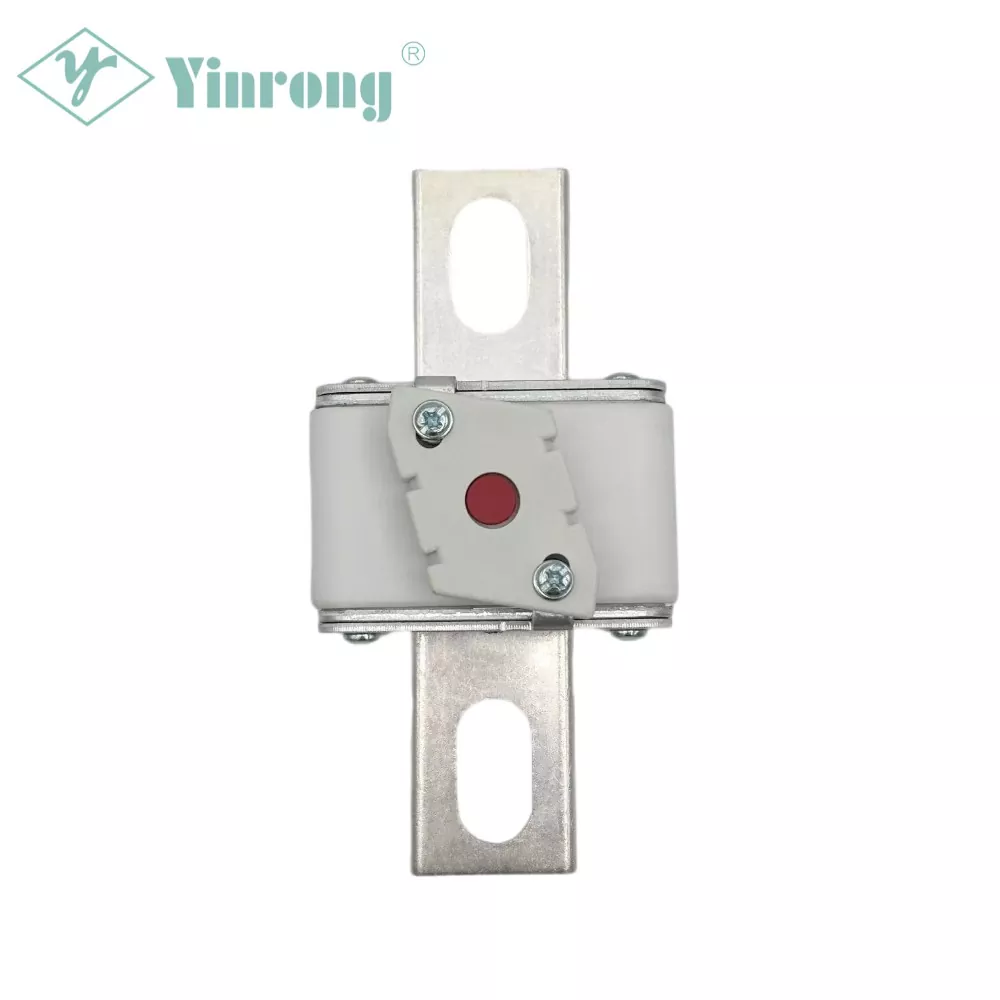

·Visual at opsyonal na micro swith fuse blown indication

Mga aplikasyon

· Mga power conversion device (UOS, inverter, rectifier, drive)

·Mga DC system（DC common bus，DC injection braking）

· Application ng proteksyon ng baterya

· Mga istasyon ng pagsingil ng de-kuryenteng sasakyan

· Mga heater at power supply

· Iba pang mga semiconductor

Bansang Pinagmulan

· People’s Republic of China

Conventional Fusing at Non-Fusing

Na-rate na Kasalukuyan (A)	Karaniwang Panahon （h）	Karaniwang Agos
		“gR”
		Inf	lf
ln≤63	1	1.13ln	1.6ln
63＜In≤160	2
160＜ln≤400	3
400＜ln	4
Tandaan: Ang ln ay ang rate na kasalukuyang ng fuse; lnf ay ang maginoo non-fusing kasalukuyang; kung ang conventional fusing current.
