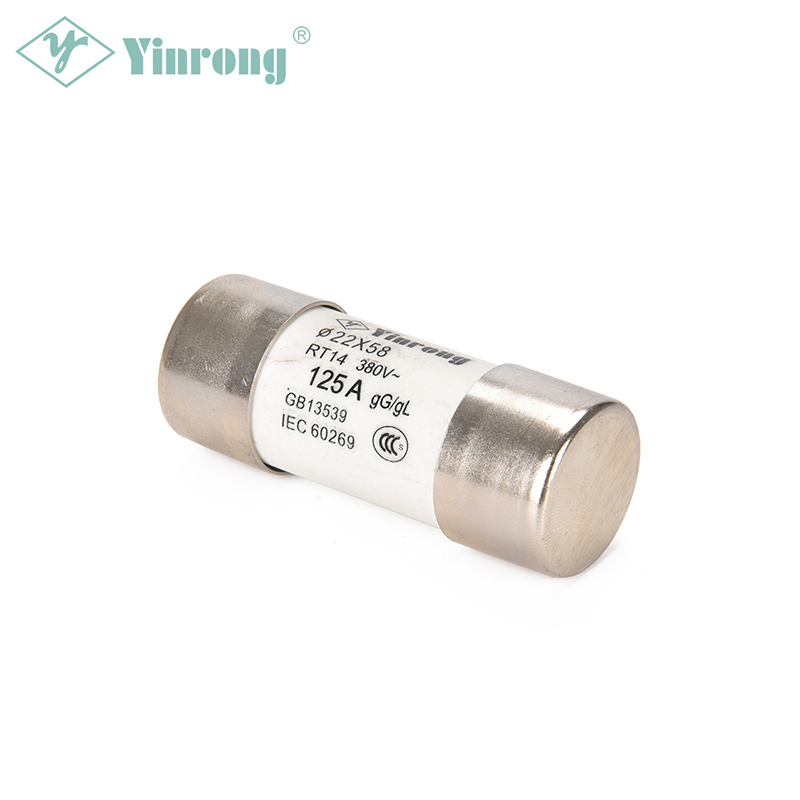

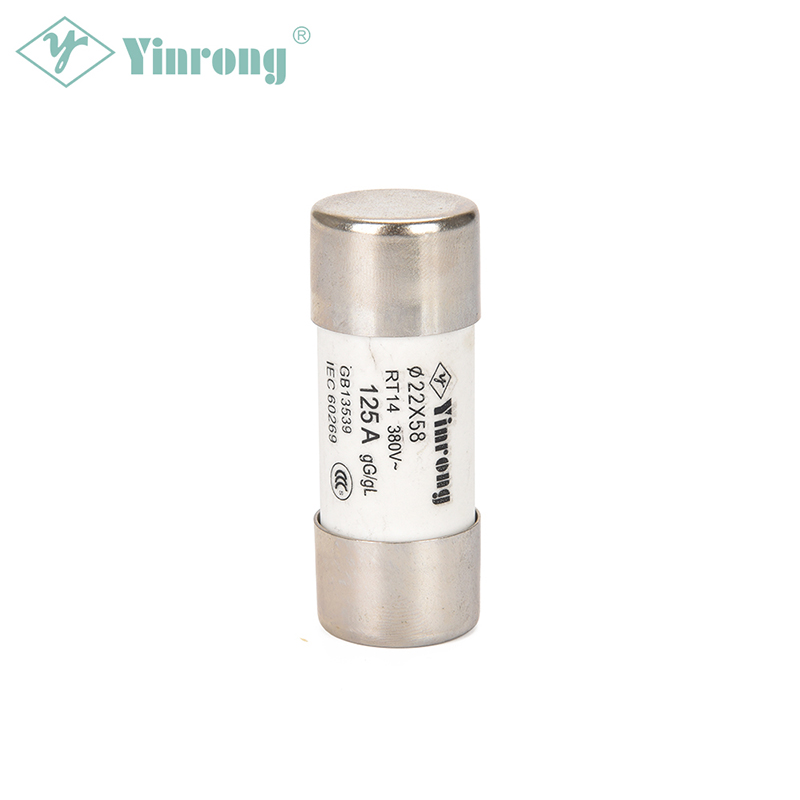

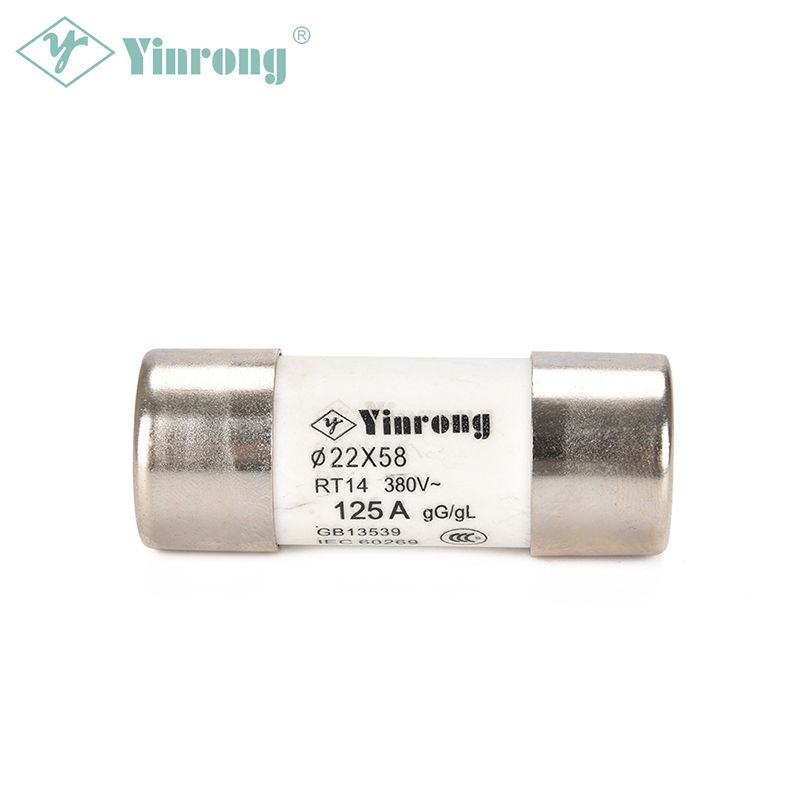

500VAC 125A 22×58mm Cylindrical HRC Fuse Link

500VAC 125A 22×58mm Cylindrical HRC Fuse Link

Mga Pag-apruba at Pamantayan

• IEC60269-1
• IEC60269-2

Klase ng Operasyon

• gG/gL
• aM
• aR

Mga Tampok at Mga Benepisyo

• Sumasaklaw sa 250VAC, 380VAC, 500VAC, at 690VAC electrical distribution circuit at iba't ibang pang-industriya na aplikasyon
• Available ang 10-125A ampere ratings
• Buong saklaw na proteksyon
• Nakakatugon sa mga pamantayan ng IEC para sa pandaigdigang pagtanggap
• Standardized cylindrical construction
• Mababang pagganap ng power dissipation para sa mas mababang pagtaas ng temperatura
• DIN Rail mountable

Mga aplikasyon

• Pangkalahatang mga pang-industriyang aplikasyon
• Mga motor drive
• gumagana ang LV-net
• Proteksyon ng cable
• Solid state relay
• Mga aparatong semiconductor
• Mga power rectifier
• Uninterruptable Power System
• Mga Converter

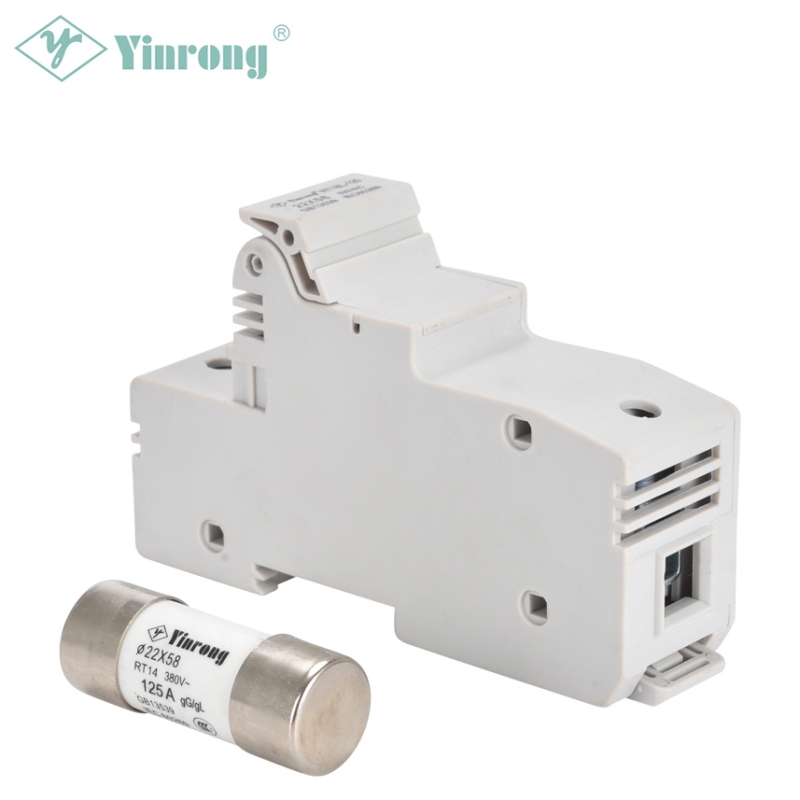

Inirerekomendang Fuse Holder

• RT18L-125 Fuse Holder

Bansang pinagmulan

• People's Republic of China

Mga Parameter

Modelo/Laki	Na-rate na Boltahe (V)	RatedCurrent (A)	Pangkalahatang Dimensyon
			ΦC	A	Fig.
10.3x38T	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38T	Fig.1
5x20	250	0.5,1,2,4,6,10,12,13	5	20	Fig.2
5x25	250	0.5,1,2,4,6,10,12,16	5	25
6x20	250	0.5,1,2,4,6,10,12,16	6	20
6.3x23	250	0.5,1,2,4,6,10,12,16,20	6.3	23
6.3x25	250	0.5,1,2,4,6,10,12,16,20	6.3	25
6.3 x31.5	250/500	0.5,1,2,4,6,10,12,16,20	6.3	31.5
8.5x23	250	0.5,1,2,4,6,10,12,16,20,25	8.5	23
8.5 x31.5	250/500	0.5,1,2,4,6,10,12,16,20,25	8.5	31.5
8.5 x36	380/500	2,4,6,8,10,12,16,20,25,32	8.5	36
10x30	380/500	2,4,6,8,10,12,16,20,25,32	10	30
10.3x28.5	250	2,4,6,8,10,12,16,20,25,32	10.3	28.5
10.3x31.5	250/500	2,4,6,8,10,12,16,20,25,32	10.3	31.5
10.3x34	250/500	2,4,6,8,10,12,16,20,25,32	10.3	34
10.3x38	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38
10.3x57	690	2,4,6,8,10,12,16,20,25,32	10.3	57
14.3x38	250/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	38
14.3x45	380/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	45
14.3x51	380/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	51
14.3x67	690	2,4,6,8,10,12,16,20,25,32,40,50	14.3	67
15x50	380/500	20,25,32,40,50	15	50
16.7x35	250/500	16,20,25,32,40,50,63	16.7	35
18x37	250/500	2,4,6,8,10,12,16,20,25,32,40,50,63	18	37
18x50	690	2,4,6,8,10,12,16,20,25,32,40,50,63	18	50
20.5x40	250/500	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	40
20.5x76	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76
20.5x114	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114
20.5x127	690	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127
22.2x58	380/500	10,16,20,25,32,40,50,63,80,100,125	22.2	58
27x60	690	32,40,50,63,80	27	60
27x139	690	32,40,50,63	27	139
27x147	690	32,40,50,63	27	147
30x57	690	16,20,25,32,40,50,63,80,100,125	30	57
14.3x51H	380/500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	51H	Fig.3
20.5 x76H	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76H
20.5x114H	690	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114H
20.5x 127H	690	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127H
22.2 x58H	690	10,16,20,25,32,40,50,63,80,100,125	22.2	58H
27x 139H	690	32,40,50,63	27	139H
27x 147H	690	32,40,50,63	27	147H

Sukat (mm)
